Model
|
Size
|
Static Load
|
Dynamic Load
|
steel tube
|
Shelf load
|
|
1008
|
1000*800*150mm
|
3 T
|
1 T
|

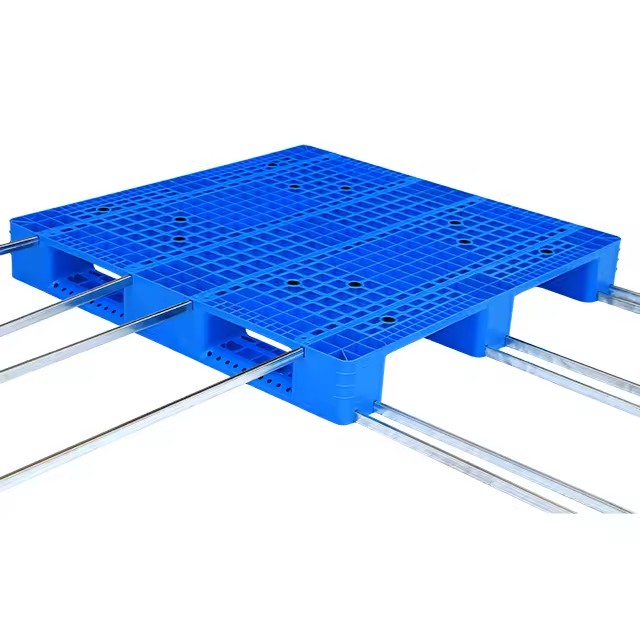

4 tubes on the surface,4 tubes on the legs
|
0.8T（add 8 steel tubes）
|
|
1010
|
1000*1000*150mm
|
3 T
|
1 T
|
4 tubes on the surface,4 tubes on the legs
|
0.8T（add 8 steel tubes）
|
|
1111
|
1100*1100*150mm
1100*1100*160mm |
4 T
|
1 T
|
4 tubes on the surface,6 tubes on the legs
|
1T（add 10 steel tubes）
|
|
1208
|
1200*800*150mm
|
3 T
|
1 T
|
4 tubes on the surface,4 tubes on the legs
|
0.8T（add 8 steel tubes）
|
|
1210
|
1200*1000*150mm

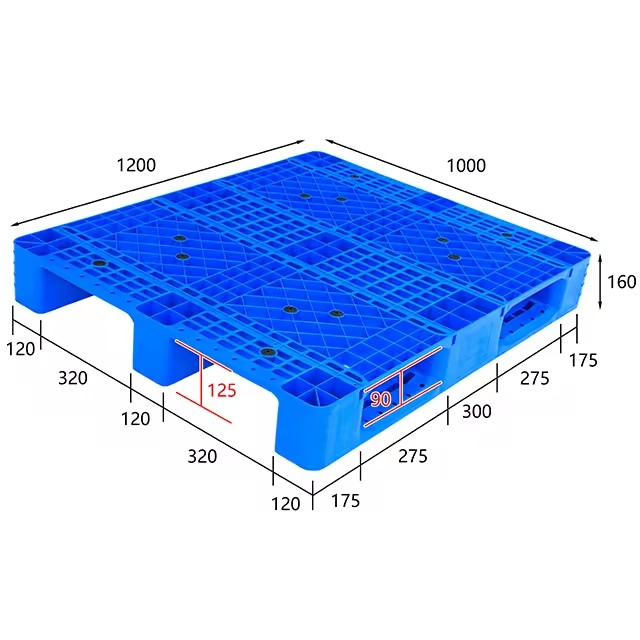

1200*1000*160mm |
4 T
|
1 T
|
4 tubes on the surface,6 tubes on the legs
|
1T（add 10 steel tubes）
|
|
1211
|
1200*1100*150mm
|
4 T
|
1 T
|
4 tubes on the surface,6 tubes on the legs
|
1T（add 10 steel tubes）
|
|
1212
|
1200*1200*150mm
1200*1200*160mm |
4 T
|
1 T
|
4 tubes on the surface,6 tubes on the legs
|
1T（add 10 steel tubes）
|
|
1311
|
1300*1100*150mm
|
4 T
|
1 T
|
4 tubes on the surface,6 tubes on the legs
|
1T（add 10 steel tubes）
|
|
1411
|
1400*1100*150mm
|
6 T
|
1 T
|
4 tubes on the surface,6 tubes on the legs
|
1T（add 10 steel tubes）
|
|
1412
|
1400*1200*150mm
|
6 T
|
1 T
|
4 tubes on the surface,6 tubes on the legs
|
1T（add 10 steel tubes）
|
